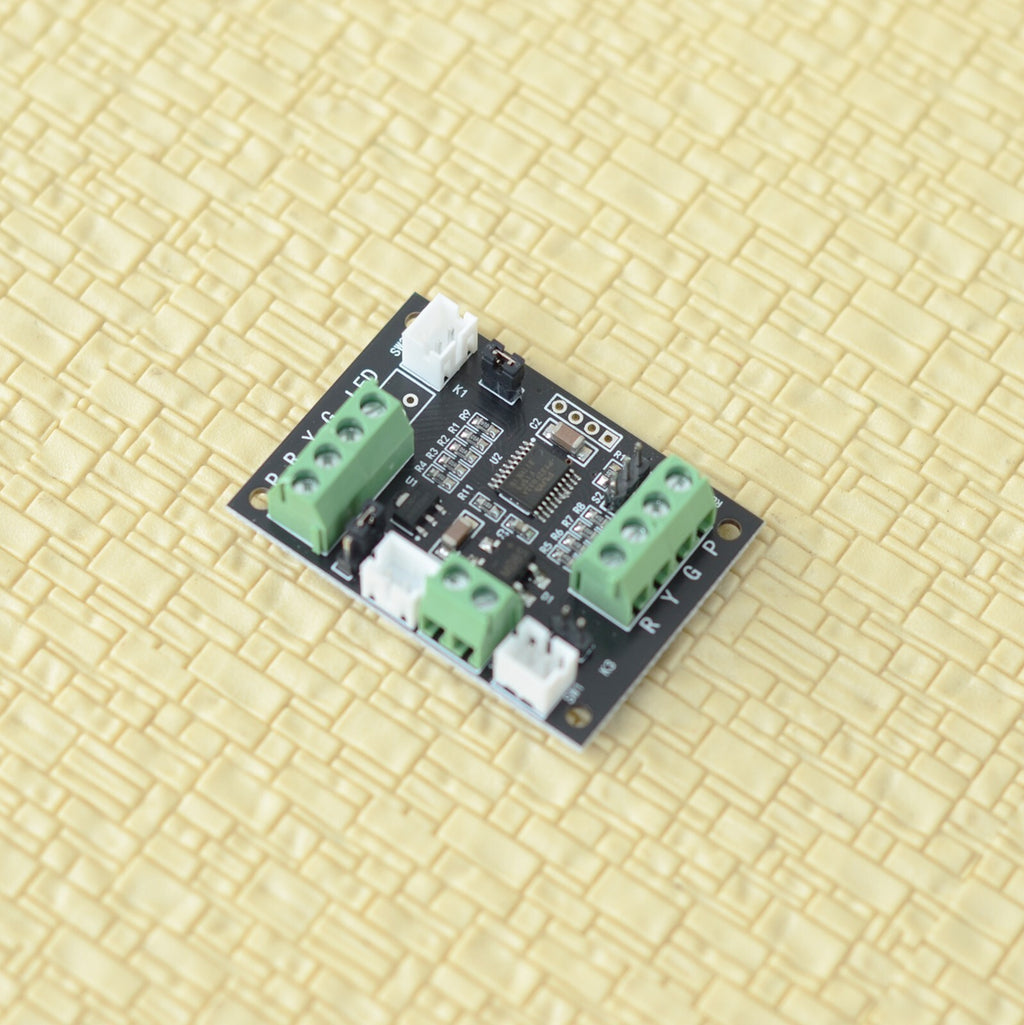

1 x Model Railroad Traffic signal Light Controller Circuit board HO N all Scale

Price is for 1 board

same way opposite direction

work for one road only, not suitable for cross signals controlling

model Traffic Lights Controller Circuit Board Simulator







 the signals will be lighted up by the following continental sequence.



=======================================================================



 the following UK sequence available if message me right after payment

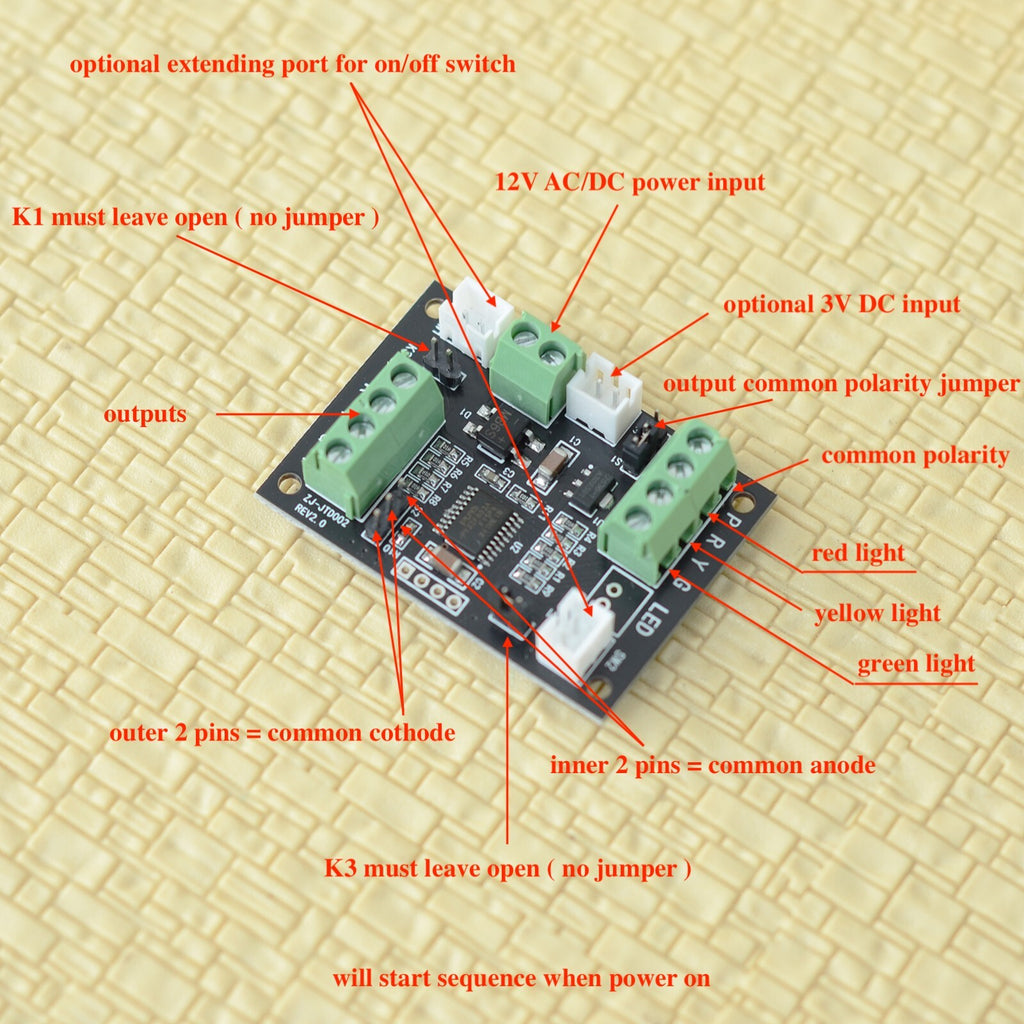

 please follow the wiring within the photos, no further instruction paper.

it works for 2 ways signals only ( western + eastern OR southern + northern ), not 4 ways signals

Extending usage 1:

Wire up to 3 groups of LED lights to the board and let them be lighted up by sequence, the lights will be turned on and off by the sequence, give them some break time to time and it's good for them, and your layout will be more vivid.

1 to 10 lights per group and can support up to 30 LED lights, self adaptive voltage and current, no need of resistors.







Extending usage 2:

    Use as a 3V DC power supply if you don't have the 3V transformer for the LED lights, self adaptive voltage and current, no need of resistors. May support 1 to 10 led lights at the same time, the lights will keep lighting with the following wiring:
