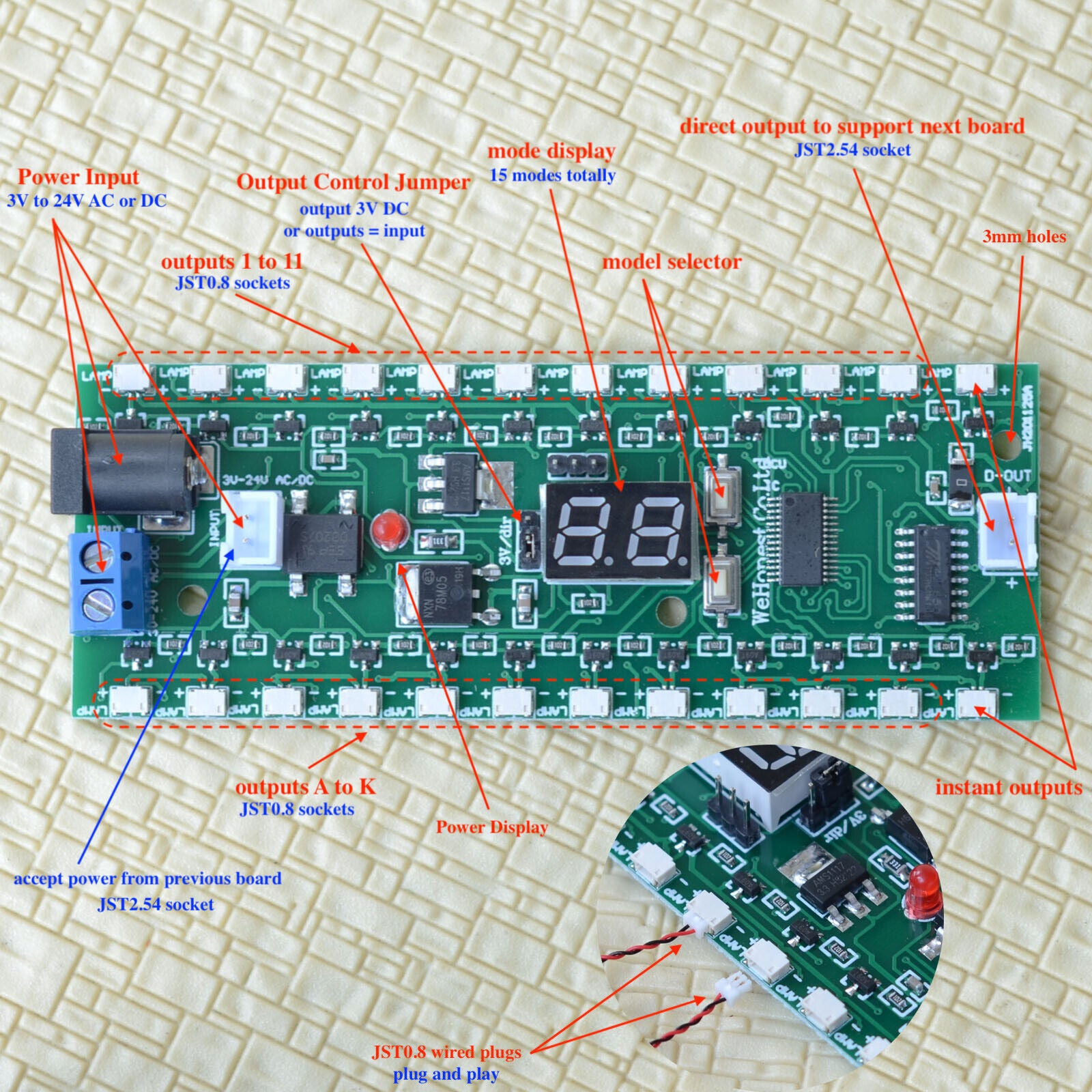

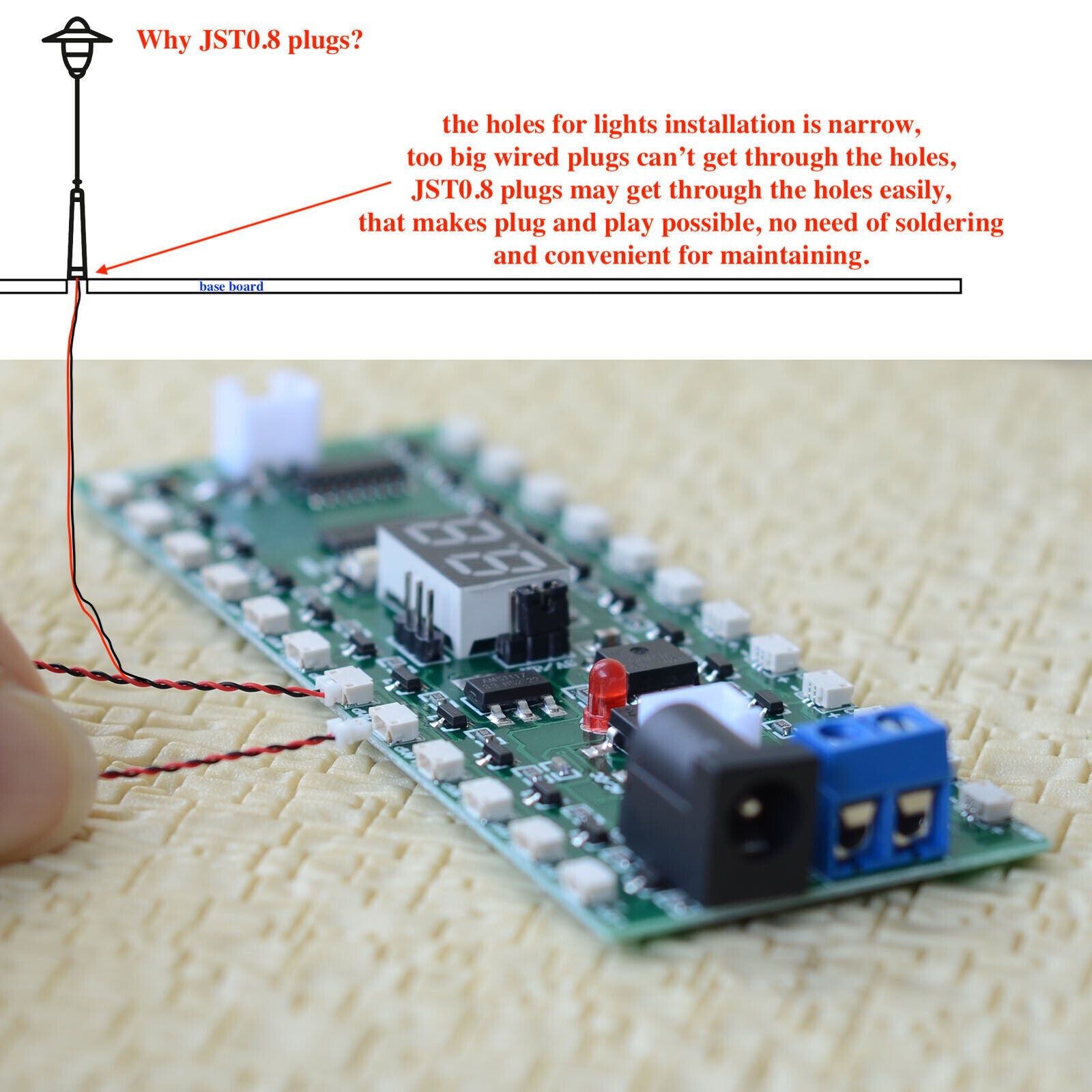

1 x sequencer board chasing LEDs revolving scenic lamp turn lights one by one

Mode 0: power display only

mode 1: all lights turn on, use as power distribution board for street lights. no changing lights.

model 2: lights 1 to 11 turning on at same time and getting brighter to max. brightness  in 40 seconds while lights A to K getting dimmer from max. brightness until turn off, then loop. Output 12 will provide full output while lights 1 to 11 start to turn on. Same for output L. ( use this mode to simulate day night changing, and add sound board from output 12 or output L, Rooster crowing in the morning etc... ).

Mode 3: lights 1 to 11 turning on at same time and getting brighter to max. brightness  in 120 seconds while lights A to K getting dimmer from max. brightness until turn off, then loop. Output 12 will provide full output while lights 1 to 11 start to turn on. Same for output L. ( use this mode to simulate day night changing, and add sound board from output 12 or output L ).

Mode 4: Light 1 and light A turn on and keep on, after 0.5 seconds, light 2 and B turn on and keep on, then light 3 to 11 and C to K, finally, light 11 and K turn off until light 1 and A.

Mode 5:Light 1 and light A turn on, after 0.5 seconds, light 2 and B turn on and light 1 and A turn off at same time, same to the rest.

Mode 6: light 1 turn on, after 0.5 second, light 2 turn on and light1 off, until light 11 then to light A until light K, then backward.

Mode 7: light 1 turn on and keep on, then light 2 to light 11, then light A to K, then loop.

Mode 8: all lights up, then light K turn off first, after 0.5 seconds, light J turn off until light 1.

Mode 9: Light 1 turn on and keep on, after 0.5 seconds, light 2 turn on and keep on, then light 3 to 11 and A to K, finally, light K turn off until light 1.

Mode 10: light 1 to 11 flash for 3 times in 3 seconds, then light A to K flash for 3 times in 3 seconds.

Mode 11: light 1 and K turn on, then light 2 and J turn on and light 1 and K turn off, same to the rest.

Mode 13: light 1 + 2 and light A + B turn on, then light 3 + 4 and light C + D turn on and previous group off. ( to drive billboard lights )

Mode 14: light 1234 and light ABCD turn on, then light 5678 and light CDEF turn on and previous group off. ( to drive billboard lights )

Model 15: light 1 to 11 and A to K flash alternately, use as crossing signals simulator.
