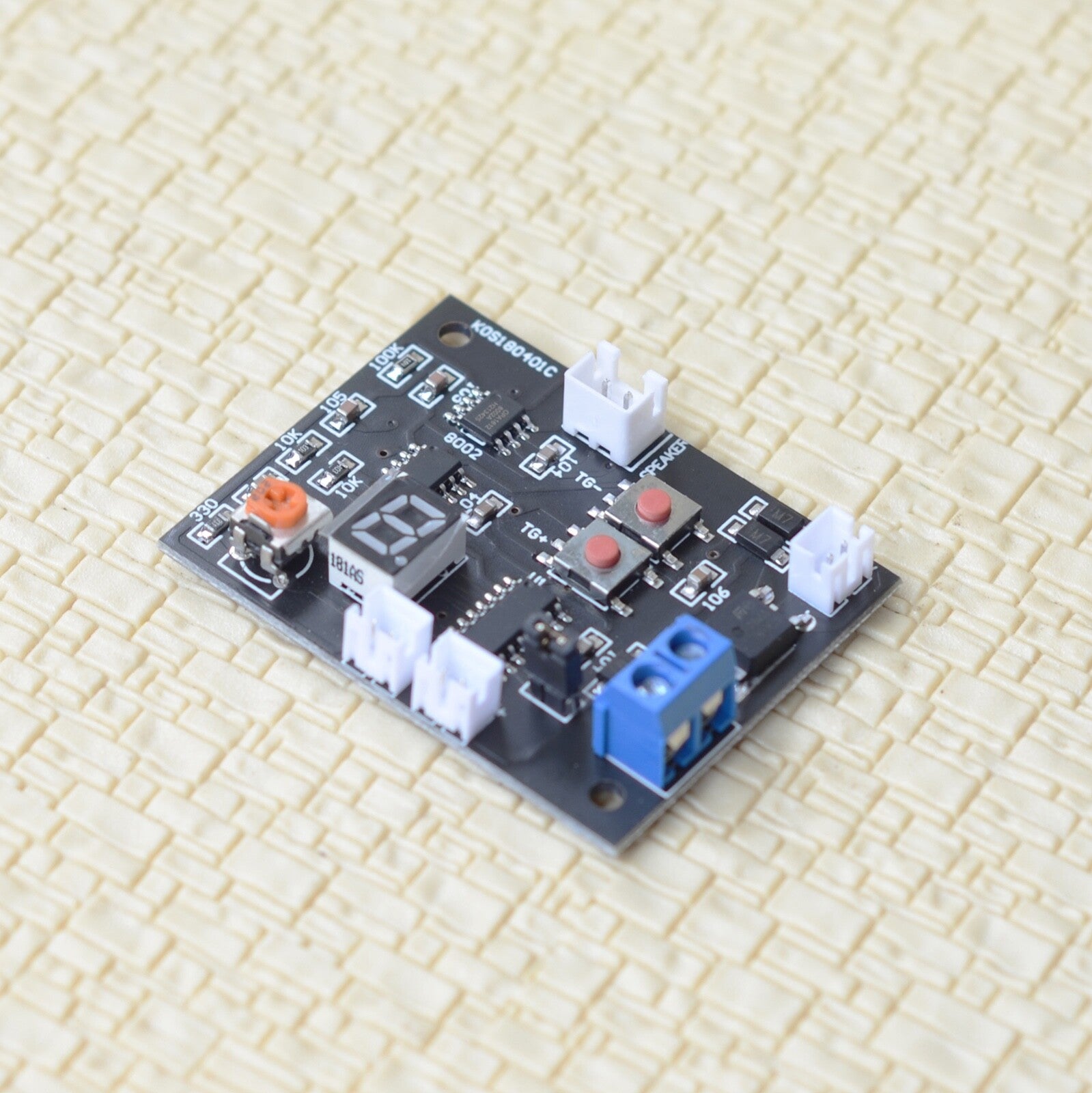

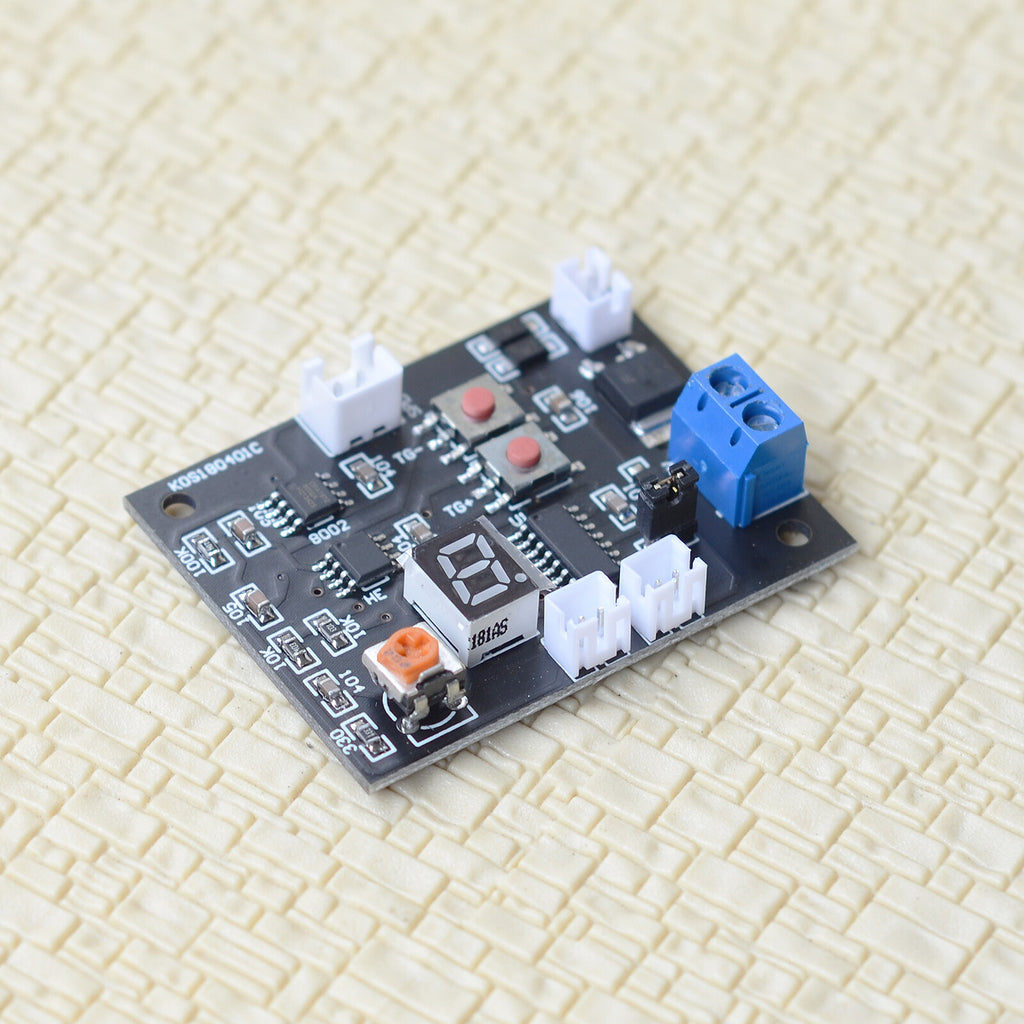

1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker
1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker
1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker
1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker
1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker
Roll over image to zoom in Click on image to zoom
1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker

1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker

WeHonest Model
Price:
$19.99 USD

Description

Welcome to our ebay store. Happy shopping

Price for 1 sound effect board with 10 sounds

Features

  • wide input power range: 3V to 5V DC (2.0mm plug) or 6V to 24 DC ( max. 1500mA input )
  • with speaker.
  • volume adjustable when use on 6V DC or above
  • with outputs to drive the crossing signal flasher if needed

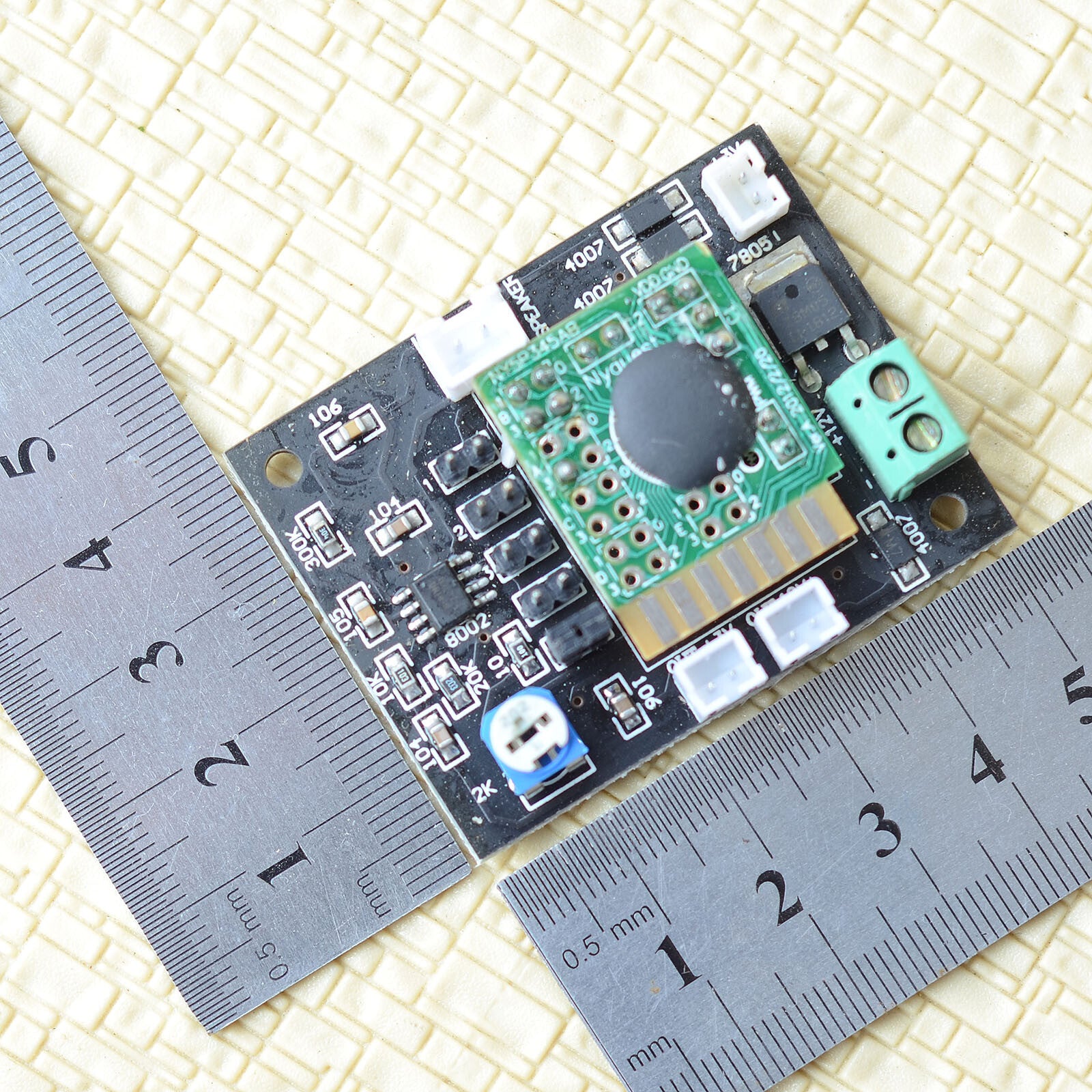

  • compact 5.2mm x 4mm in size

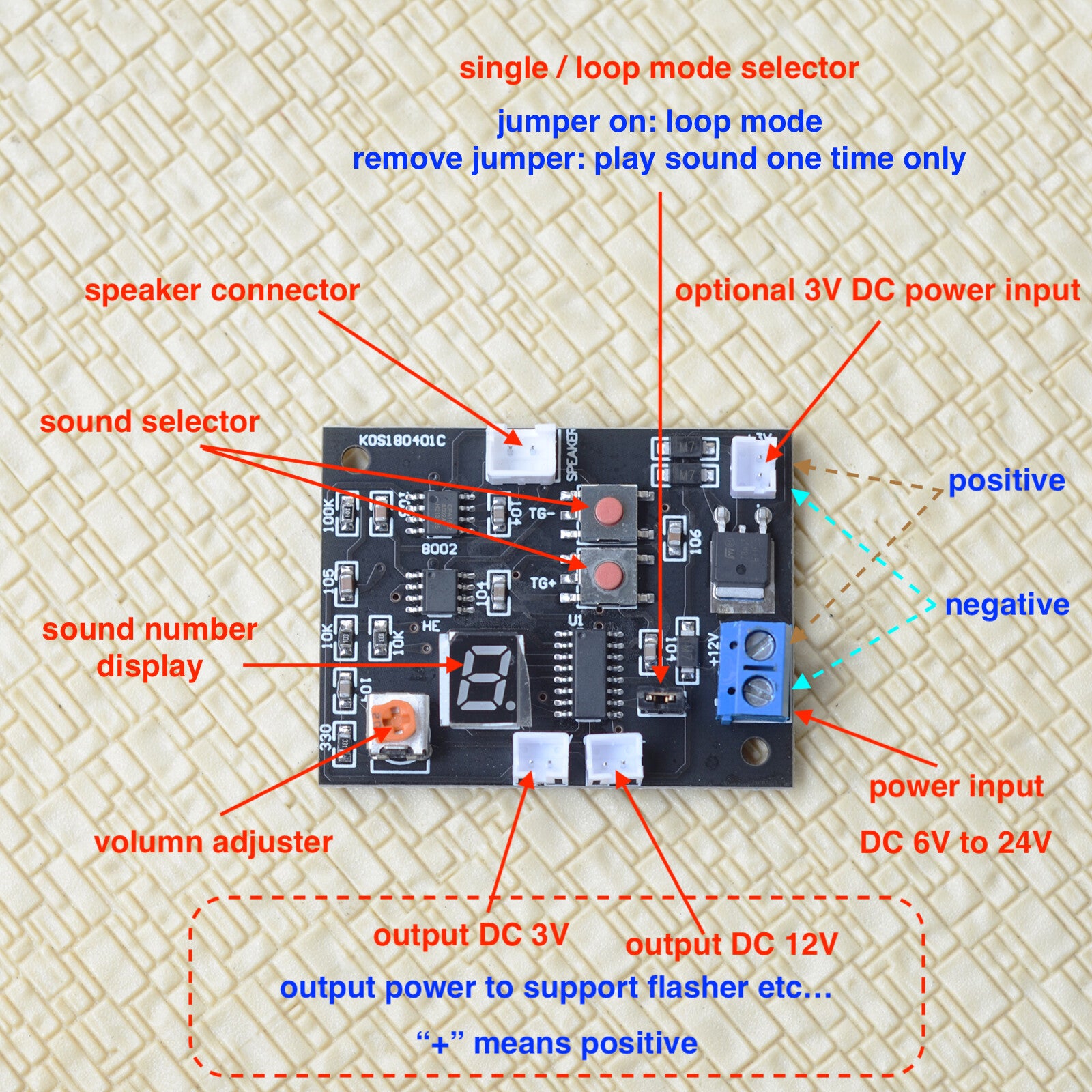

how it works:

under loop mode ( jumper on ): The sound effect board plays a continuous loop sound when powered on, either manually or by a trigger board controller, until powered off.

under single mode ( remove the jumper ): will play the sound for one time only when power on.

Package Includes

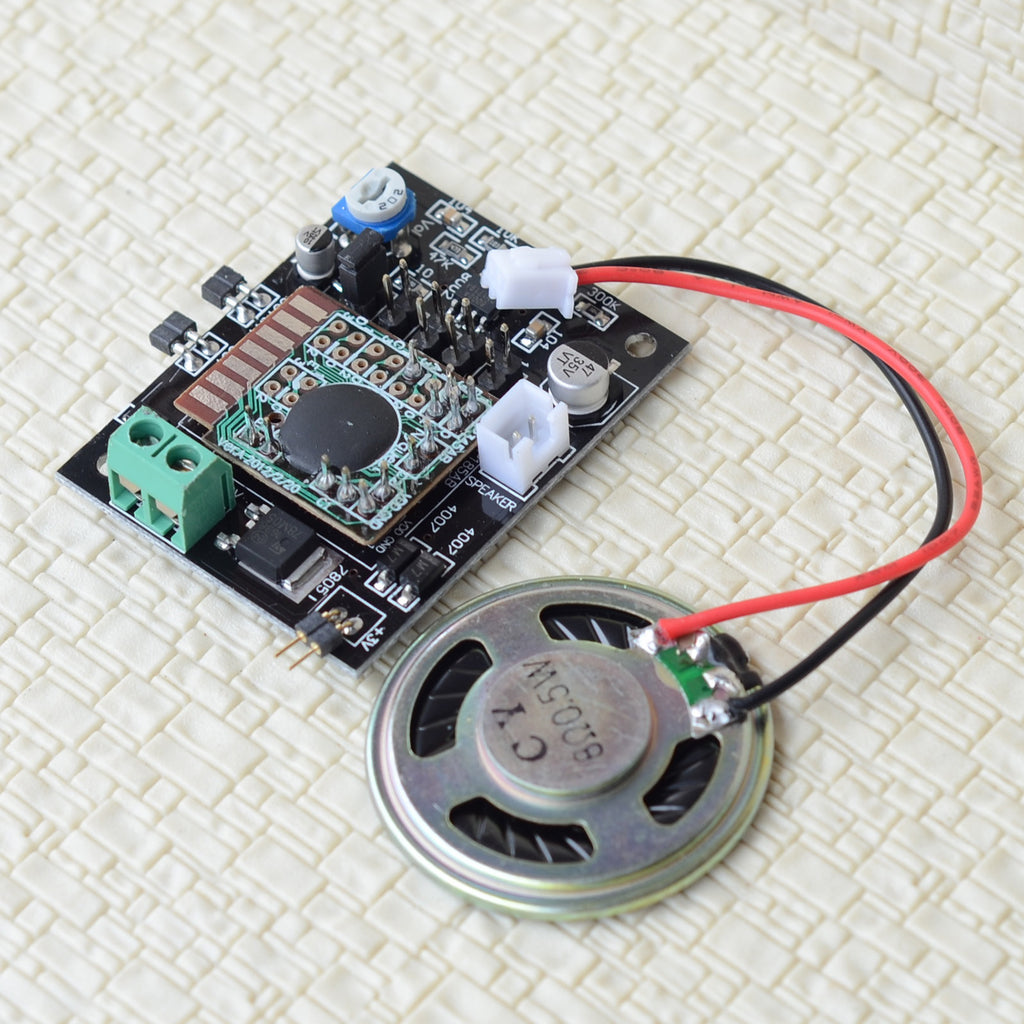

  • 1 sound effect board
  • 1 speaker with wired connector
  • no paper instruction/wiring, please come back to this page to check the informations
Related Items:

click the following links to listen the sounds



Click here to listen the sound #0



Click here to listen the sound #1



Click here to listen the sound #2



Click here to listen the sound #3



Click here to listen the sound #4



Click here to listen the sound #5



Click here to listen the sound #6



Click here to listen the sound #7



Click here to listen the sound #8



Click here to listen the sound #9









control it manually or automatically by the following board ( click the small photo to buy ):
1 x model train detector automatic signal controller crossing system trigger etc
need louder speaker or other accessories? ( click the small photo to buy )
1 x louder speaker for sound effect board of grade crossing signal higher volume    6 x mini plug kits 2 Pins JST 2.0mm Micro Connector male with 30cm wire cables
