2 x O scale railroad grade crossing signal arm gate stop lever flasher #48S20

WeHonest Model
Price:
$29.99 USD

Description

Store Categories
Why Buy From us

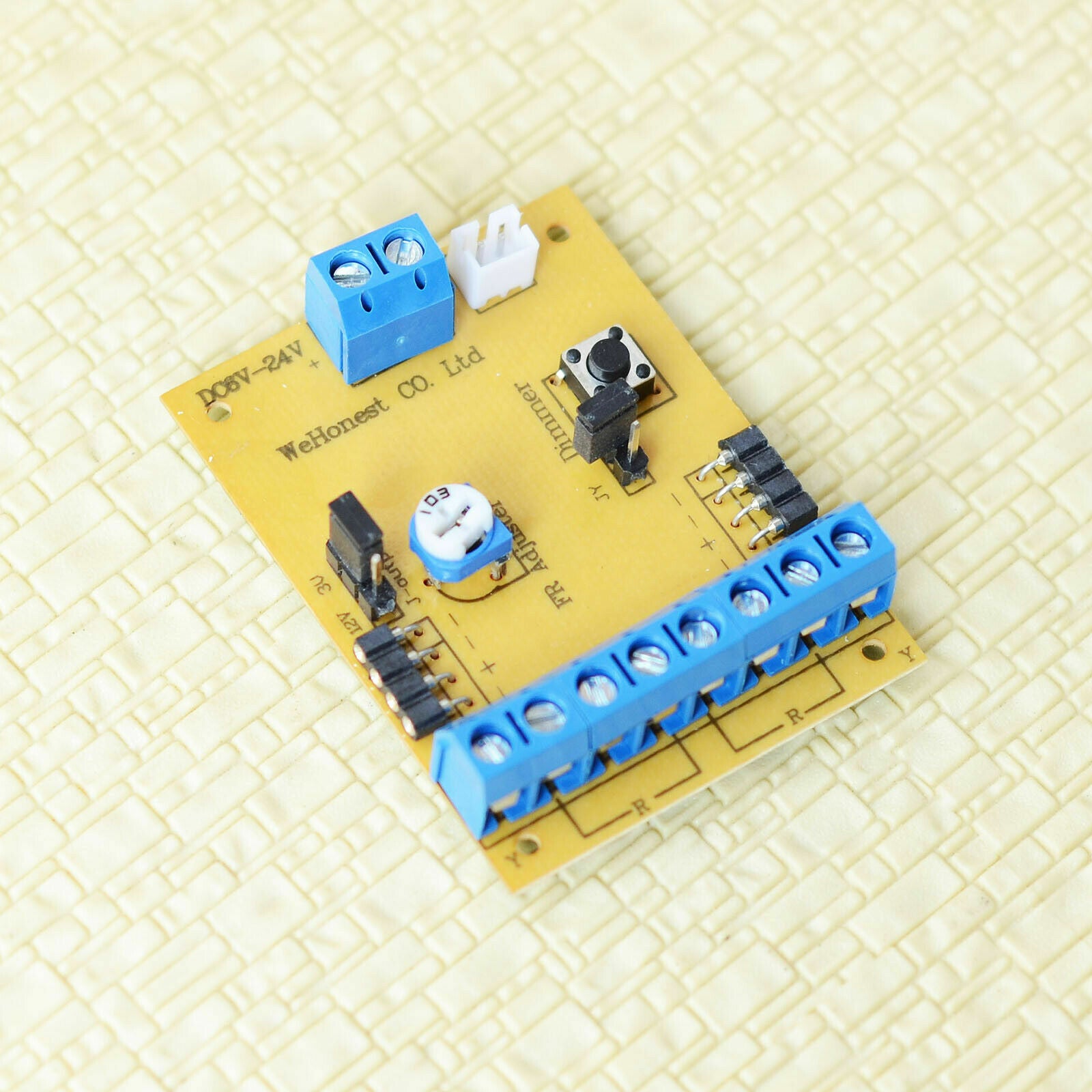

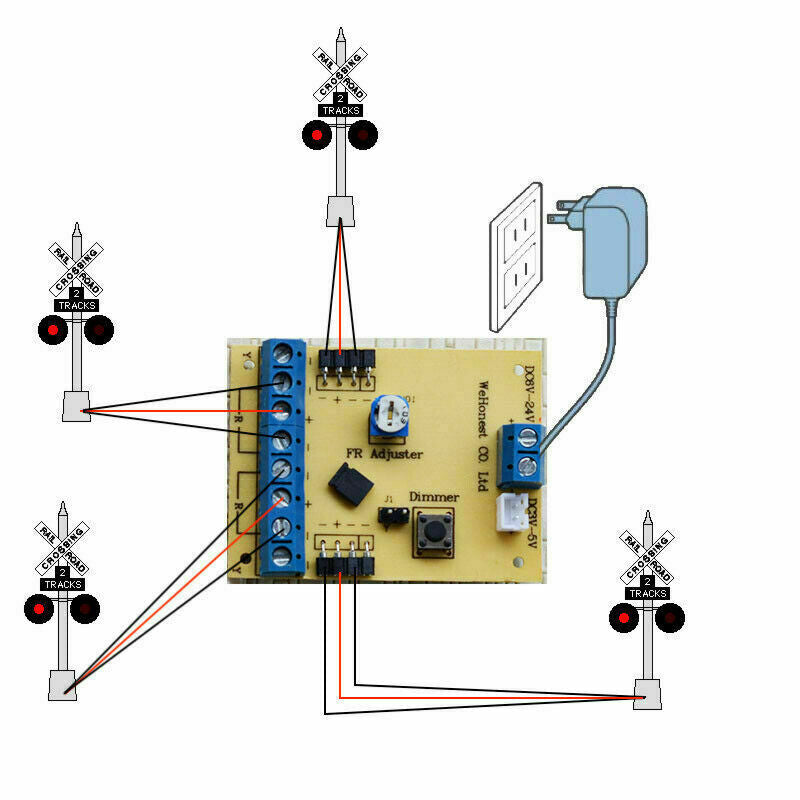

price for 2 complete crossing signals + 1 circuit board flasher
Items Description

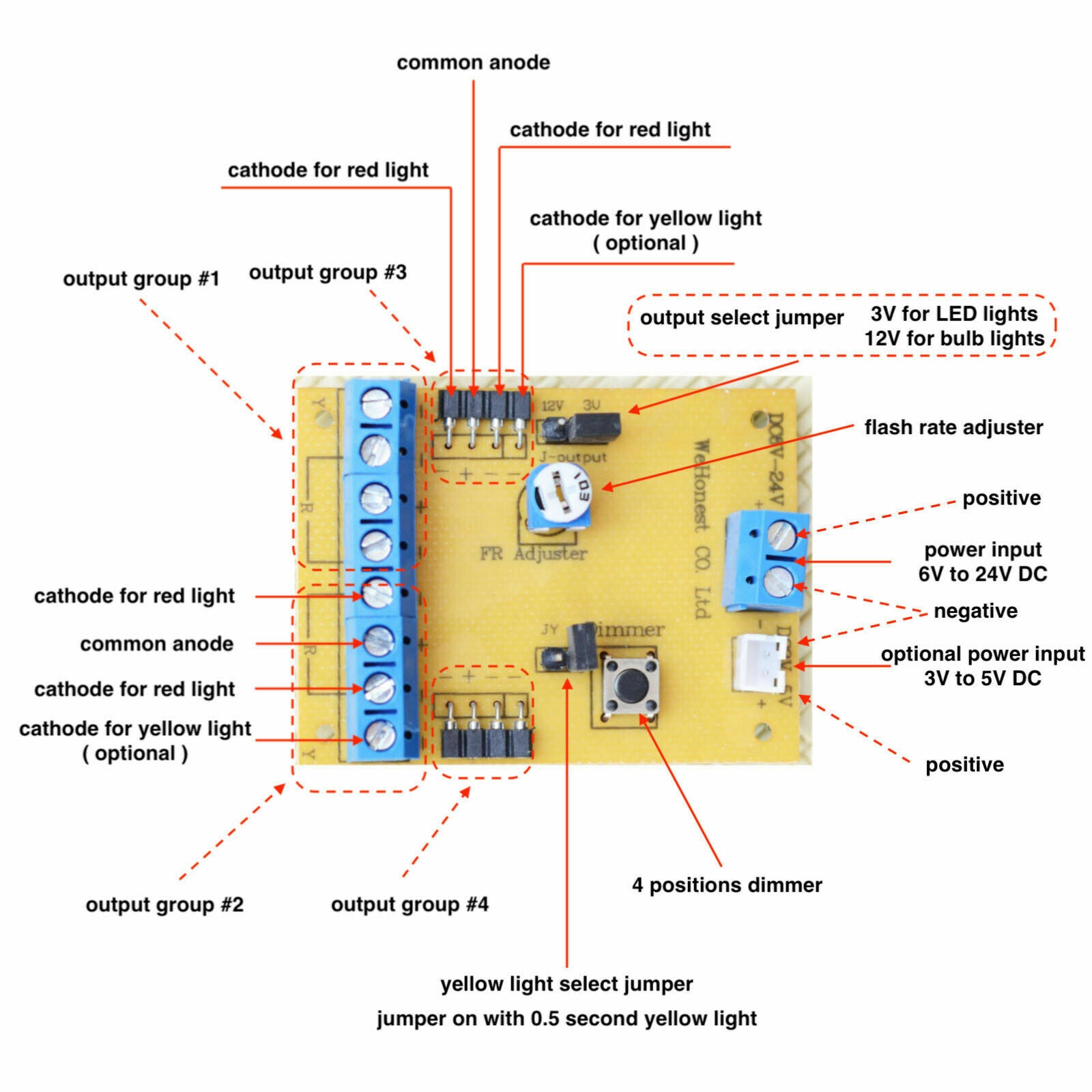

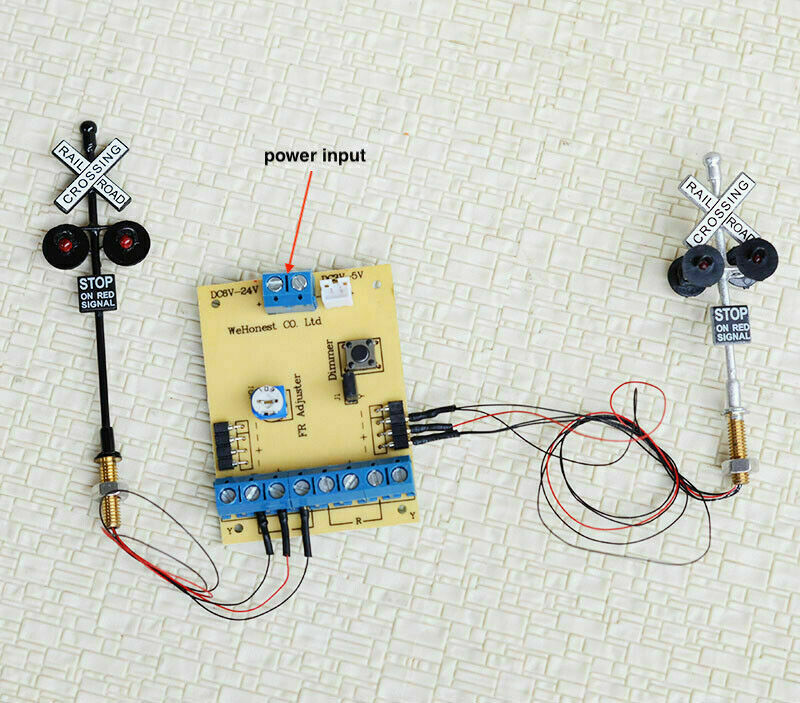

  • complete with wires and LEDs and can be lighted alternately.
  • common anode with 3 lead wires

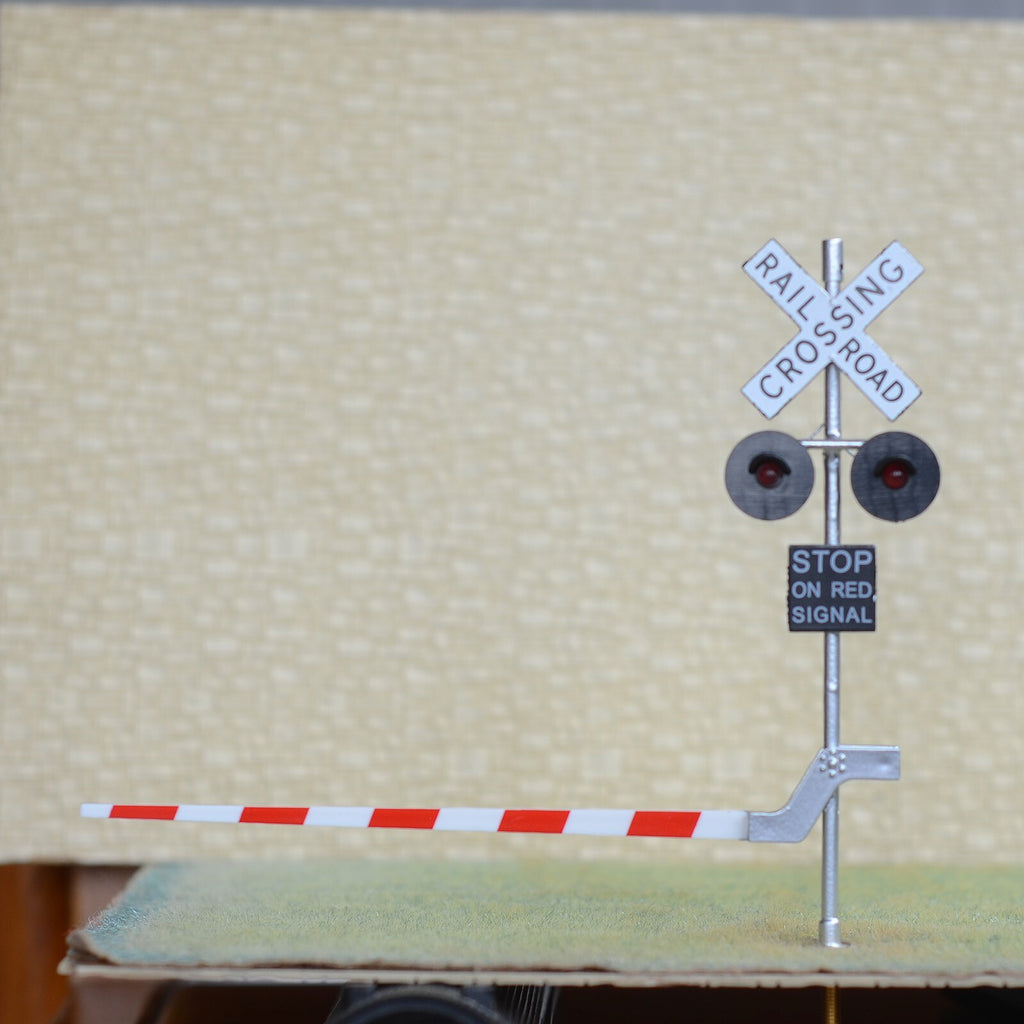

  • gate may up down on left side ( default ), message me right after payment if you need the up down on right side signals

Specifications:

  • Brand: WeHonest Model.

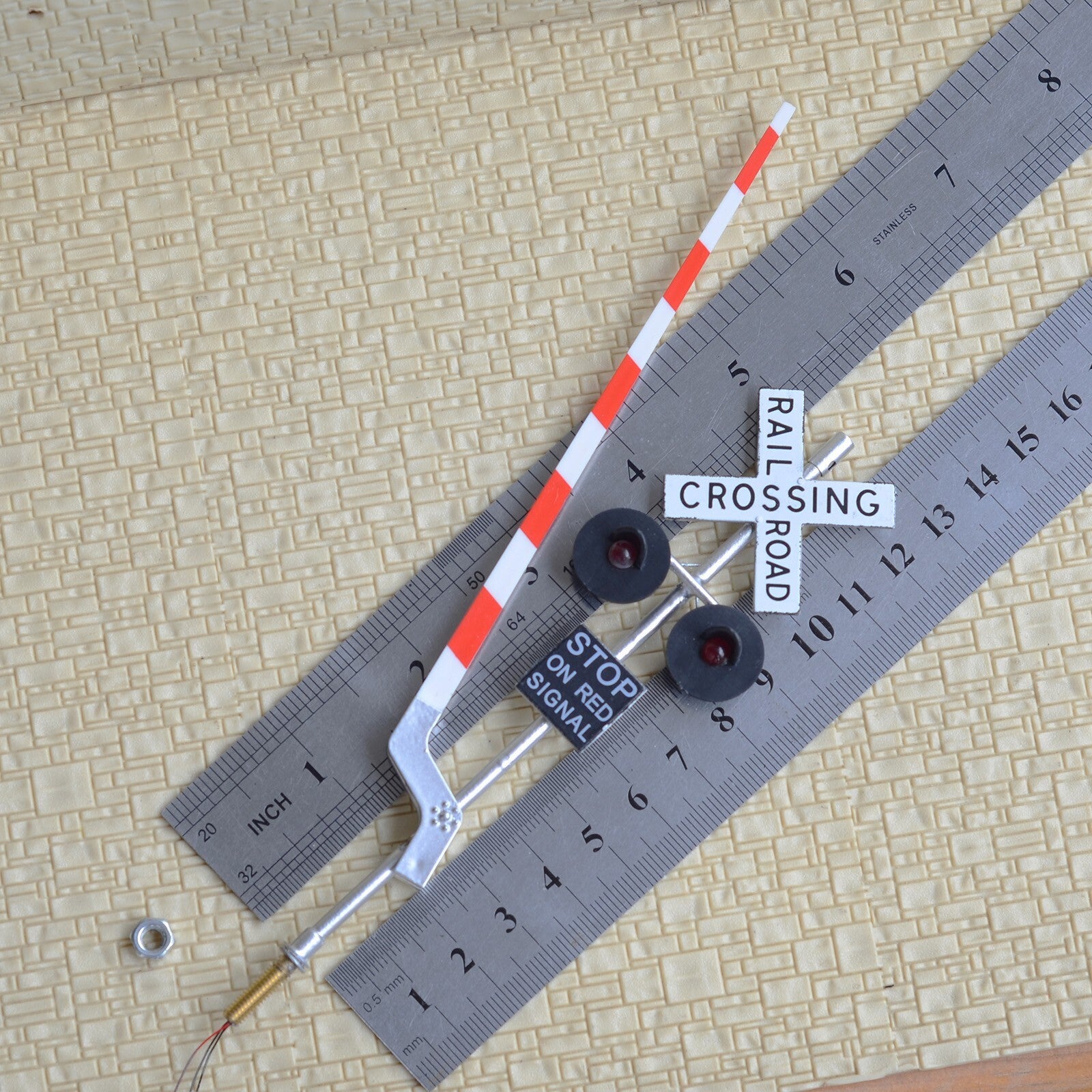

  • Size: Please check it from the above photo.
  • Reference Scale: Suitable for O scale layouts.

  • The circuit board work on DC 3V to 24V only, DON”T apply 110V/220V power to the circuit board directly or the board will be defected, please use a DC transformer and apply correct power to the circuit board.

  • signal lights are made with LED, and work on 3V DC 20mA, don't use them on more than 3V unless you wire resistors with them, the flasher board come with the order provides 3V DC for them, so no need of wiring resistors.

  • Material: brass

Package included:

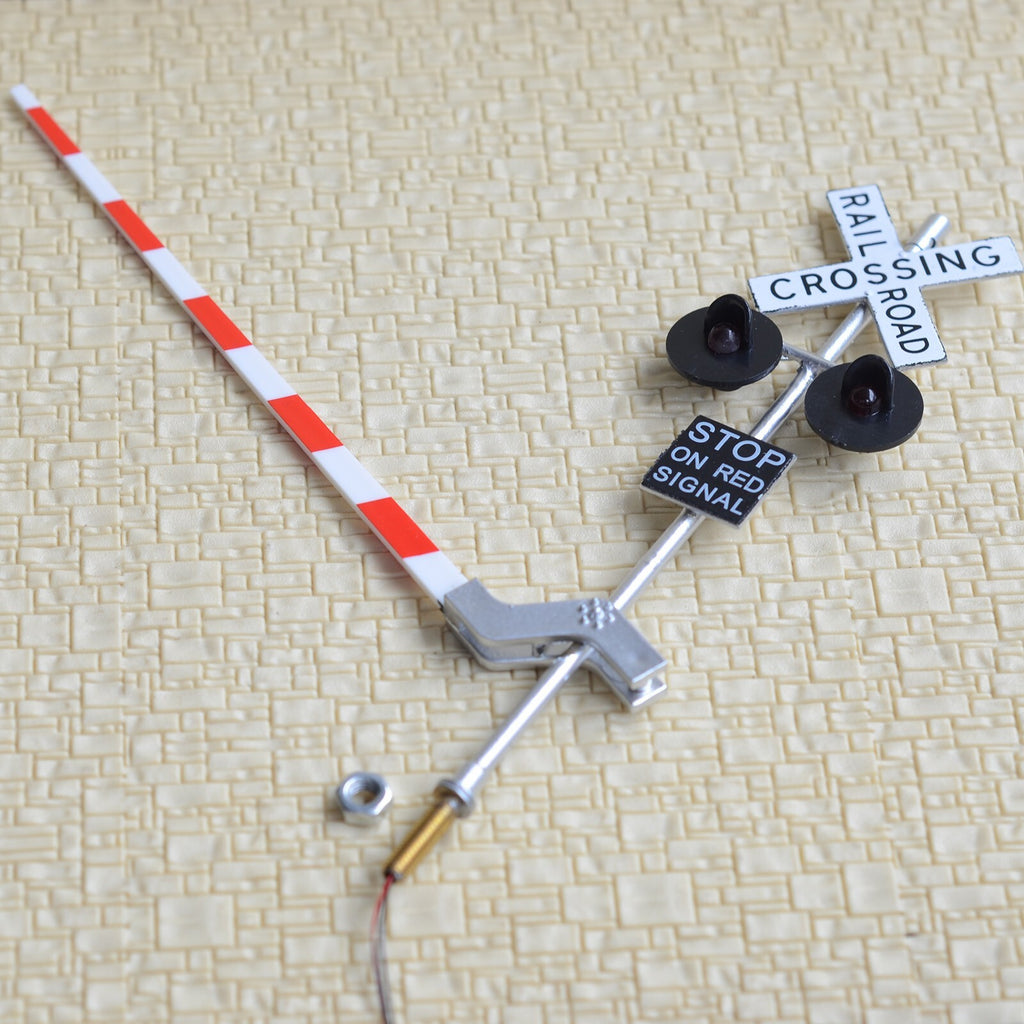

  • 2 complete crossing signal

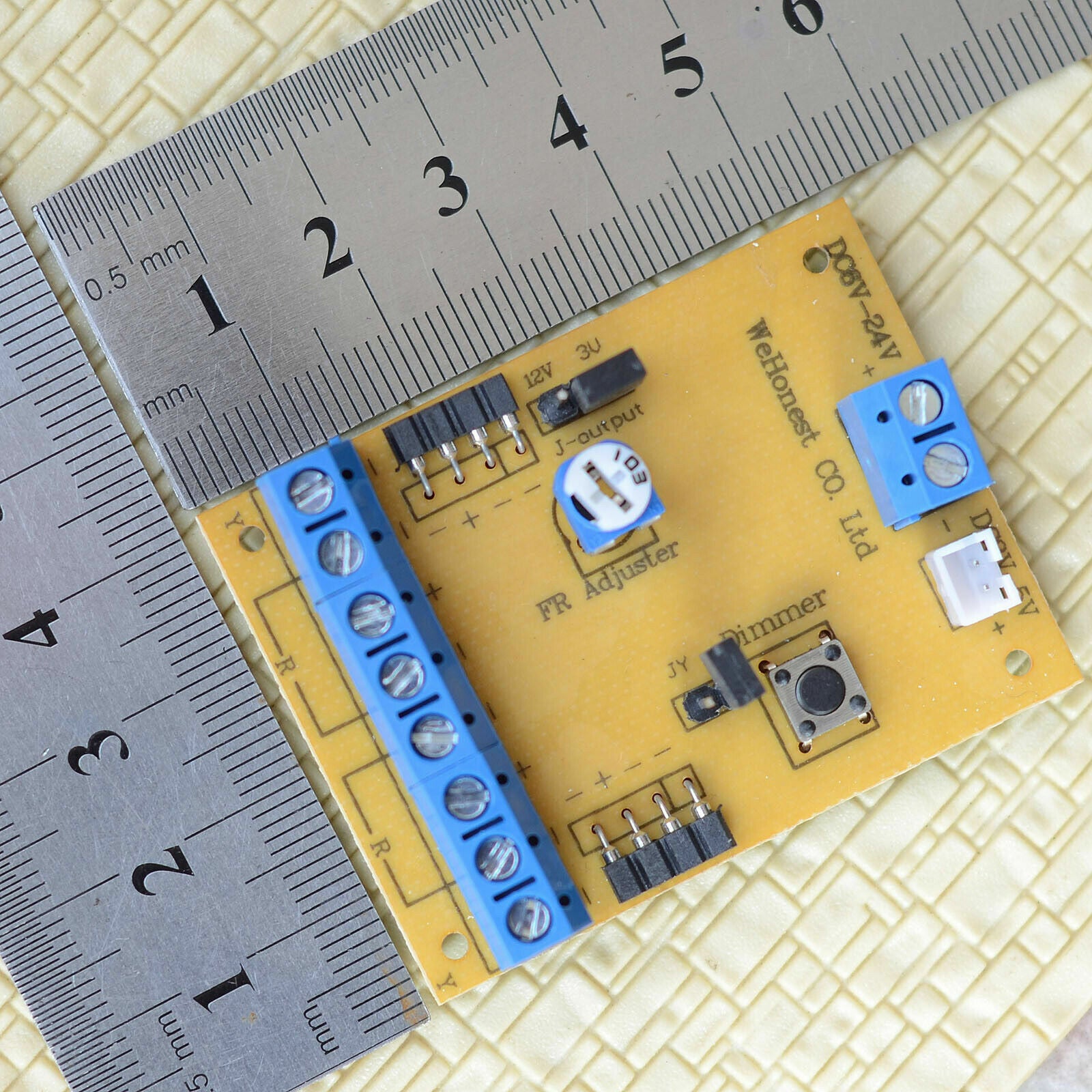

  • 1 circuit board flasher
  • ( won't include the boards to control the gate, must buy extra items to control them via the following links: )
Additional items you may need:
Click the small photos and they will lead you the related listing to buy them

    to let the flasher board work automatically by trains, need the following Master Board

    1 x model train detector automatic signal controller crossing system trigger etc

    to control the gates, besides the master board, need the following servos

    1 x SG90 mini servo with Acrylic bracket installer for crossing signal gate arms

    to adjust the servos' speed and use more servos, the following board may do:

    1 x servo speed adjustor board motor hub expander for grade crossing signal gate

    to extend the crossing signals' wires, the following:

                                                              8 x extending wires with Connector for HO N Scale 2 aspects signals #3P

    to add sound effect to the crossing signals, the following:

                                                              1 x sound effect board for grade crossing signal clang bell tinkle w/ speaker

    use the following transformer to power them if you don't have one:

                                                           1 x US standard Transformer 12V DC Adaptor Power Supply for HO N street Lights
